Forensics Detectors FD-CO2000-WALL
CO2 sensors are used to control ventilation systems and monitor indoor air quality. They can be stand-alone sensors or integrated into thermostats or air quality monitoring platforms.
Learn MoreIf you are experiencing issues with the comparison tool, please disable your adblocker.
Forensics Detectors FD-CO2000-WALL
Indoor air quality monitoring platform with CO2 sensors.
Hub Highlights:
- Basic display of CO2, temperature, and humidity values. Three color LEDs indicate CO2 range.
- No building automation system connection.
- Excellent performance on Hub CO2 accuracy testing protocols
- Includes CO2, temperature, and humidity sensors. Manual calibration available.
Last Edited on: 6/26/2025
| Sensor Type | Non-dispersive infrared (NDIR) Manufacturer: Cubic |
| Power Input | 120 VAC (Wall outlet) |
| Outputs | None |
| Altitude Correction Method | Unknown |
| Measurement Range | 0-5,000 ppm |
| Reported Accuracy | ± 50 ppm or ± 5% of reading (larger of two) |
| CO2 Display | On device |
| Uses Automatic Background Calibration (ABC) | Unknown |
| Date of Test (including warm-up period if device uses automatic background calibration) | September 26, 2024 |
| Sample Size | 5 |
|
Error of CO2 measurement @1100 ppm (average) (ppm)
|
-53 |
|
Error of CO2 measurement @ 1100 ppm (standard deviation) (ppm)
|
31 |
| Accuracy Category | less than ±75ppm |
|
Noise of CO2 measurement @1100 ppm (Average) (ppm)
|
3 |
|

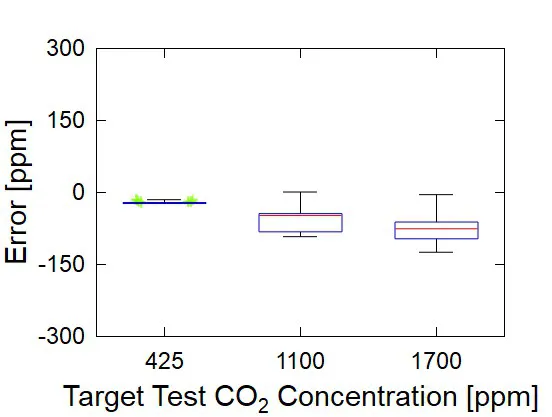

CO2 Full results
|
See Box Plot |
| Operating Power for Sensor (watts) | 0.50 |
| Operating Power for Gateway (watts) | NA |
|
Operating Power for Sensor + Gateway (watts)
|
0.50 |
| Operating Power Category | less than ±1 W |
| Maximum Number of Sensors per Gateway | NA |
Data Collection
Sample Size
5
Data Source: Staff at the UC Davis Western Cooling Efficiency Center
User interface
1. Can the sensor display the CO2 level to occupants? If yes describe.
Yes - Sensor displays live CO2 readings on LCD screen.
User interface
2. Can the sensor display a visual indicator to occupants that the CO2 level has exceeded a programmed threshold? If yes, describe (what does the indicator look like, what the default thresholds are, and can the threshold be changed).
Yes - Built-in green LED lights up when CO2 is below the low setpoint (800 ppm by default), built-in red LED lights up when CO2 is above the high setpoint (1100 by default), and built-in yellow LED lights up when CO2 is between the two setpoints. Setpoints are configurable on the device.
Reporting capabilities
3. Can the sensor alert facilities (such as an email, text, or call phone application) when the CO2 level has exceeded a programmed threshold? If yes, describe (what does the indicator look like and can the threshold be changed).
Yes - Sensor has an auditory alarm that sounds when CO2 exceeds the high limit. Alarm can be muted.
Integration capabilities
4. Can the CO2 sensor interface with a building automation system (BAS) or demand control ventilation (DCV) system controller? If yes, describe if integration capabilities are vendor specific.
No
Integration capabilities
5. If sensor can interface with a BAS or DCV system controller, is additional hardware required?
NA
Reporting capabilities, Integration capabilities
6. How can the CO2 sensor data be logged? If proprietary software, describe (what type of account is needed, what logging intervals are available, what does it look like, and describe its capabilities including data download capabilities).
Logged data unavailable.
Installation
7. Does the sensor require specialized software for installation? If yes, describe.
No
Installation
8. Does the sensor require specialized training for installation? If yes, describe.
No
Operation
9. Does the sensor require on-going maintenance? If yes, describe.
No
Operation
10. Does the sensor require service contracts for ongoing data access? If yes, describe.
No
Miscellaneous
11. Are there any other notes about the user experience?
Plugs into wall outlet.
