Current Daintree EZ Connect
Luminaire-integrated Controls (LIC) are lighting systems in which sensors, control logic, and dimming capability are embedded directly within each luminaire. LICs enable core energy-saving strategies, such as occupancy sensing, daylight harvesting, and high-end trim, without requiring external sensors, low-voltage control wiring, or centralized network hardware. Fixtures can also communicate locally to operate in coordinated groups.
Learn More
A wireless, app-based control platform targeted at commercial and industrial lighting. Daintree EZ Connect enables zonal control and simple commissioning, allowing luminaires (or connected fixtures) to respond to occupancy or daylight without requiring extensive wiring or external control hardware, useful for streamlined retrofits.
- 5 Year Warranty
- Integratable with enterprise level NLC offerings
- App-based commissioning
| Model Number | LCAT 2x2 WIZ20 |
| Nominal Voltage for Connected Luminaire | 120/277/347 VAC |
| Sensor Dimensions | Circular, 32 mm diameter |
| Max Number of Connected Nodes | 50 |
| Max Zones per Area | Unspecified |
| Connectivity Method between Sensors | Wireless 802.15.4 |
| Network Connectivity | Network Connectivity supported only with Gateway integration |
| Control Methods | Occupancy, Daylight Harvesting, High End Trim, Luminaire Level Lighting Control, Scheduling (with gateway) |
| Sensing Methods | Daylighting, Occupancy |
| Occupancy Sensor Type | Passive Infrared |
| BACnet Capable | When integrated to larger Daintree offering |
| Rest API | When integrated to larger Daintree offering |
| Operating Temp | 0 - 60 C |
| Operating Environment | Indoor |
| Standards/Certifications | cULus Listed, DLC listed, FCC |
| Sample Size | 1-3 |
|
Power Consumption for LIC (LED Disconnected)
|
0.3596 |
|
Power Consumption (W) for LED (LIC Disconnected)
|
23.2423 |
|
Power Consumption (W) for LIC (Factory Default)
|
0.3521 |
|
Power Consumption (W) for Luminaire (Factory Default)
|
23.4789 |
|
Power Consumption (W) for LIC (Commissioned)
|
0.3577 |
|
Power Consumption (W) for Luminaire (Commissioned)
|
23.1593 |
|
Power Consumption (W) for LIC (Networked)
|
0.3576 |
|
Power Consumption (W) for Luminaire (Networked)
|
0.5139 |
|
Daylight Saturation Point (fc)
|
312.00 |
|
Setpoint variance during daylight increase (fc)
|
17.00 |
|
Setpoint variance during daylight decrease (fc)
|
18.00 |
|

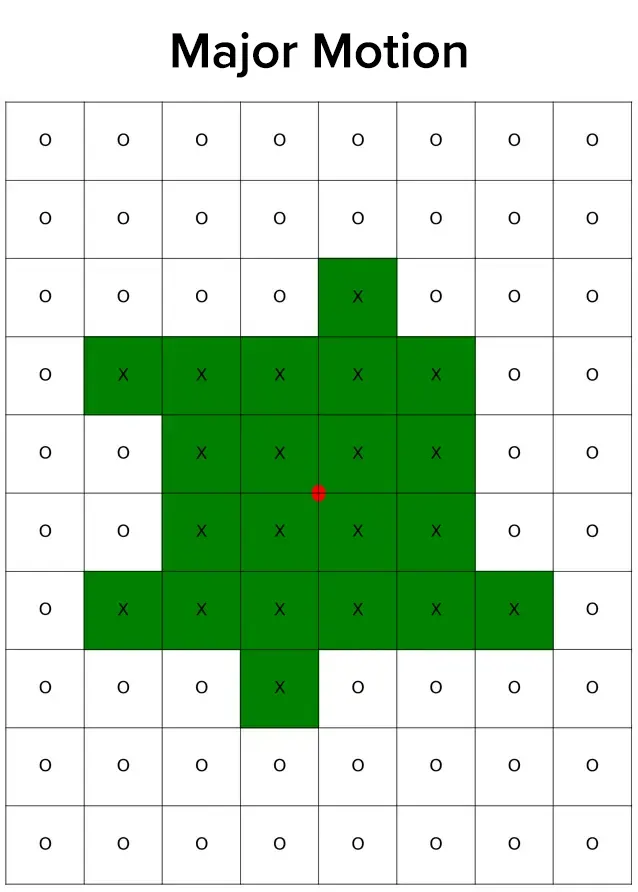

Occupancy Major Motion Response
|
Passed (see chart) |
|

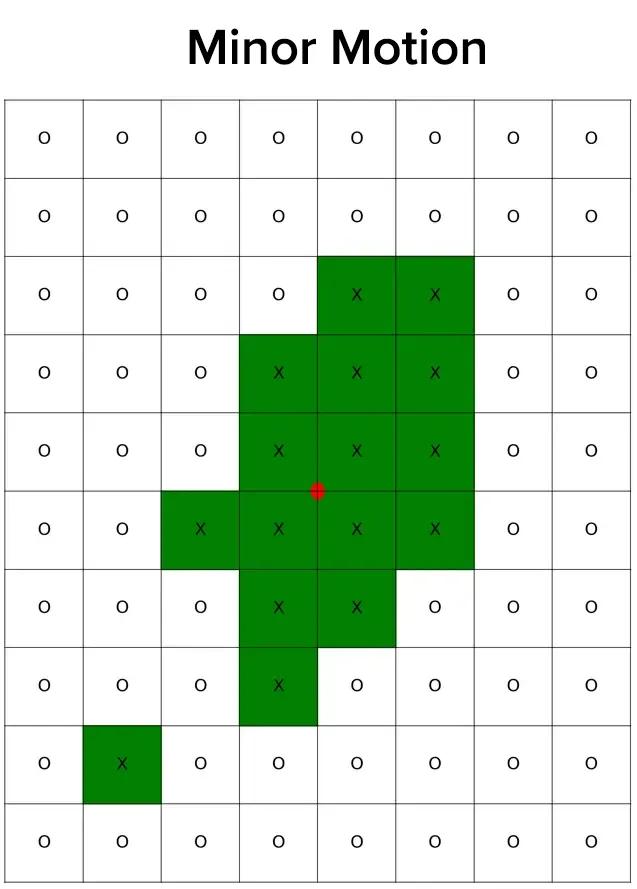

Occupancy Minor Motion Response
|
Passed (see chart) |
